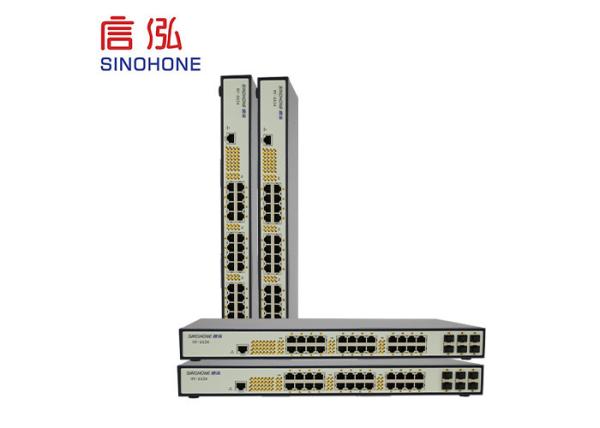

Management Rj45 Fiber Optic Cable Security 30 Ports Converter

Management PoE RJ45 Port Security Switch Fiber Optic Network Switch 30 Ports Converter

Descriptions:

HY-6424P is perfect for senarios such as express way monitoring and supervisory control for its POE power supply and PTN ring network. 6 1000M SFP port and 24 1000M electric port, can achieve 256G exchange capacity and 35.7Mpps, which makes it a good choice for security switch.

Management:

• Support CLI, Ethernet port, IPv4/IPv6 HTTP, IPv4/IPv6 FTP/TFTP, IPv4/IPv6 SNTP/NTP
• It supports radius authentication of Telnet username and password of IPv4/IPv6, SSH of IPv4/IPv6, security IP security network management function, syslog of IPv4/IPv6, SNMPv1/v2c/v3, MIB interface and Trap.
• Support RMON 1, 2, 3, 9 groups, dual IMG and multiple configuration files, support LLDP, support port mirroring, CPU mirroring, RSPAN and ERSPAN, support sFlow traffic monitoring, support Reset one-key restore, support zero-contact configuration*, support IEEE1588 time synchronization.
• Information Centor, OAM, VSF

Power and Power Supply

No fan, low power consumption, total power consumption of equipment itself is less than 30W
AC input: default 220V:100V~260V

Application

• Metallurgical, petroleum and petrochemical, road traffic control automation
• Building automatic control system
• Oilfielf control automation
• Hydropower station control automation

Specifications:

Other Specifications:

• Support port aggregation/LACP, support 1:1 port protection
• Interport protection based on LACP protocol, linear protection based on G.8031 protocol and ring network protection based on G.8032 protocol are supported.
• Support port redirection and port mirroring, support port-based barrier transfer function
• Support MSTP/RSTP protocol
• Supporting fibre breaking alarm; Supporting Dying Gasp remote device power failure alarm
• Support on-line upgrade of equipment
• Supporting storm suppression and port speed limit, speed limit particles up to 64K
• Support on-line upgrade of equipment
• Supporting SLA enables link performance testing such as link delay, jitter, packet loss and throughput
• Support port-based, 802.1P, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
